Accordion Skirting & Bellows
“Manufacturing Skirting since the 1970’s, safety skirting is one of the longest running products Custom Faberkin offers. There was a need, Custom Faberkin pioneered the process and filled this need.”
Accordion Style Safety Skirting for Scissor Lift Tables. also known as Safety Curtains, or Lift Table Bellows. Skirts for Conveyor Systems, Custom or Standard tables. Also made for dock levelers as dock leveler skirt. No matter the name brand of the table or the age, we can make your safety skirting!
- protect workers from pinch points
- protect your equipment from dirty environments
- made from 22oz vinyl- Durable and self extinguishing
- many colors and width sizes available
- Teflon material for high temperature applications also available
- support wires and mounting hardware
- quick installation
- compatible will all brands of lifts
- great to use with lifting conveyor systems
- maintenance ties for easy access to the table for maintenance
- flat bar or hook & loop mounting
- option to customize mounting to the ID , OD or a combination of ID & OD
- folds can fall under or outside of table top area
We will quote your needed skirting quickly. Made to order using your supplied dimensions. We build to suit your needs.

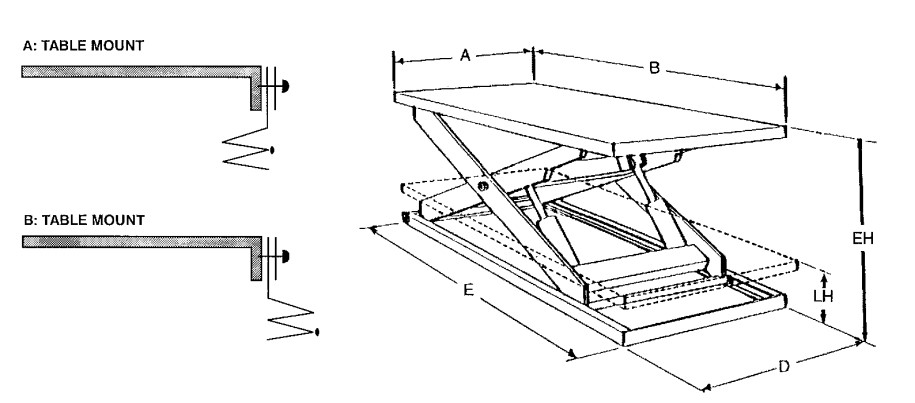

The construction of safety skirting are generally the same. However there are many options available. With a few basic measurements we can get you the skirting you need.
Made to Last

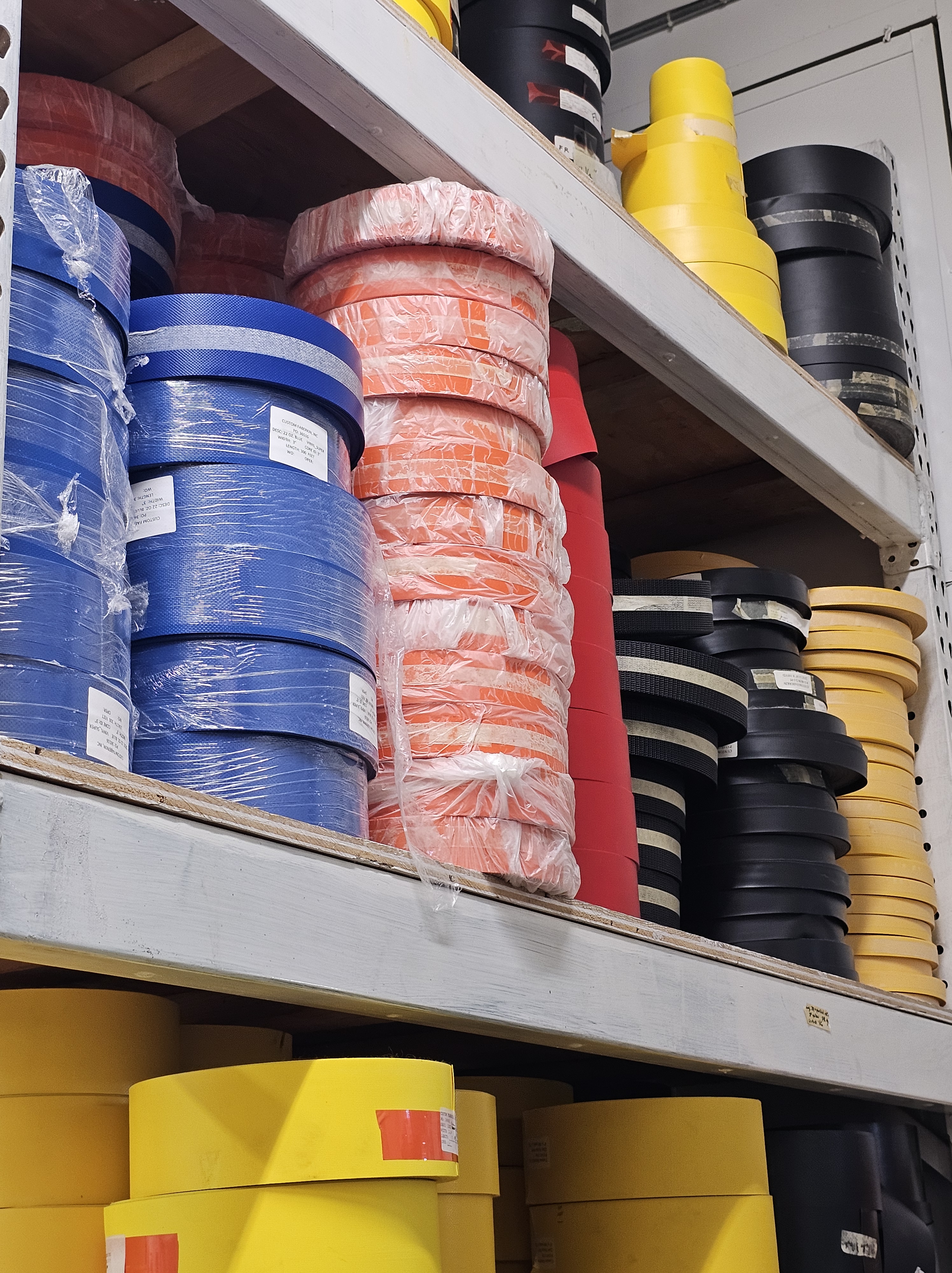

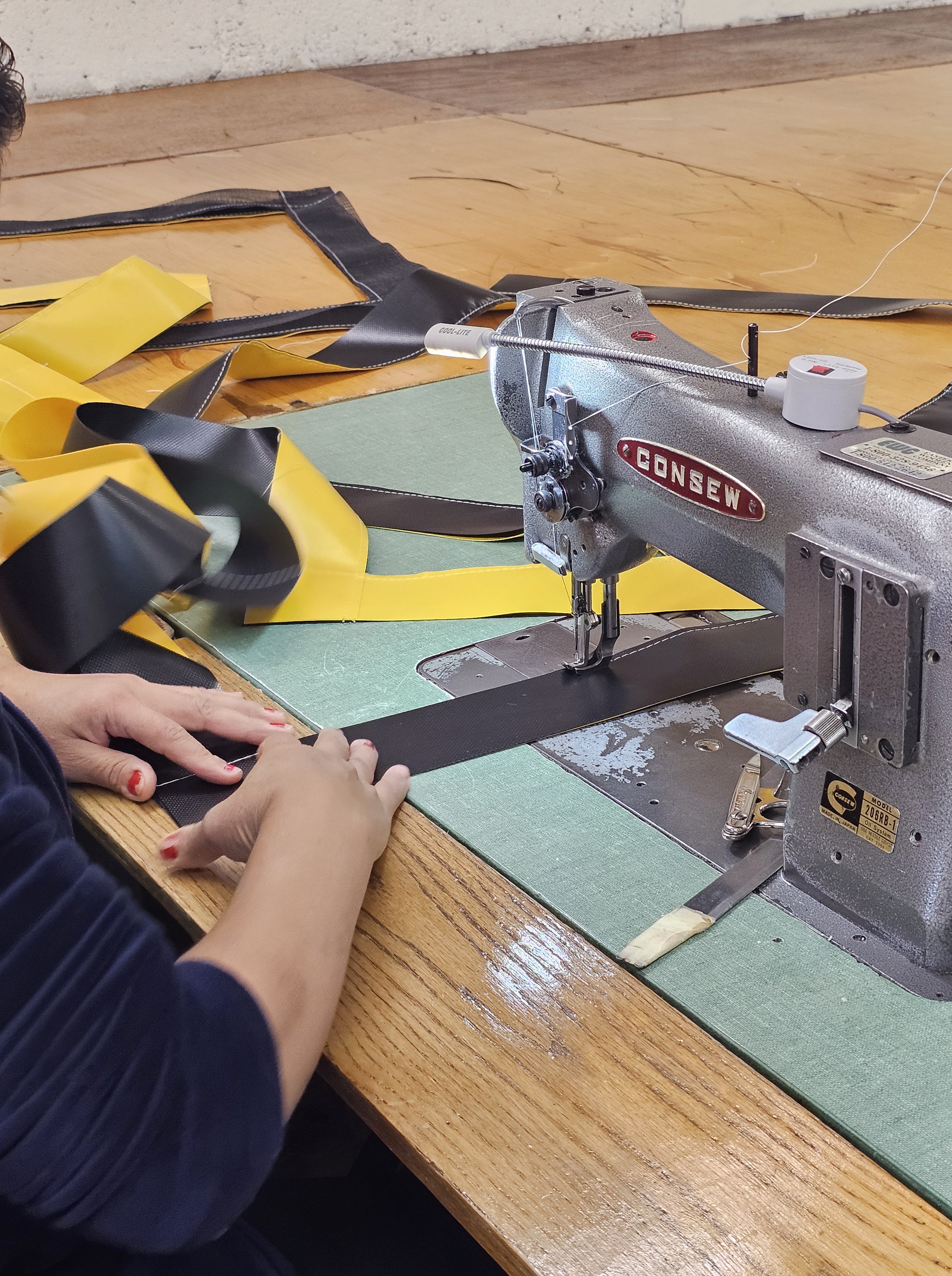

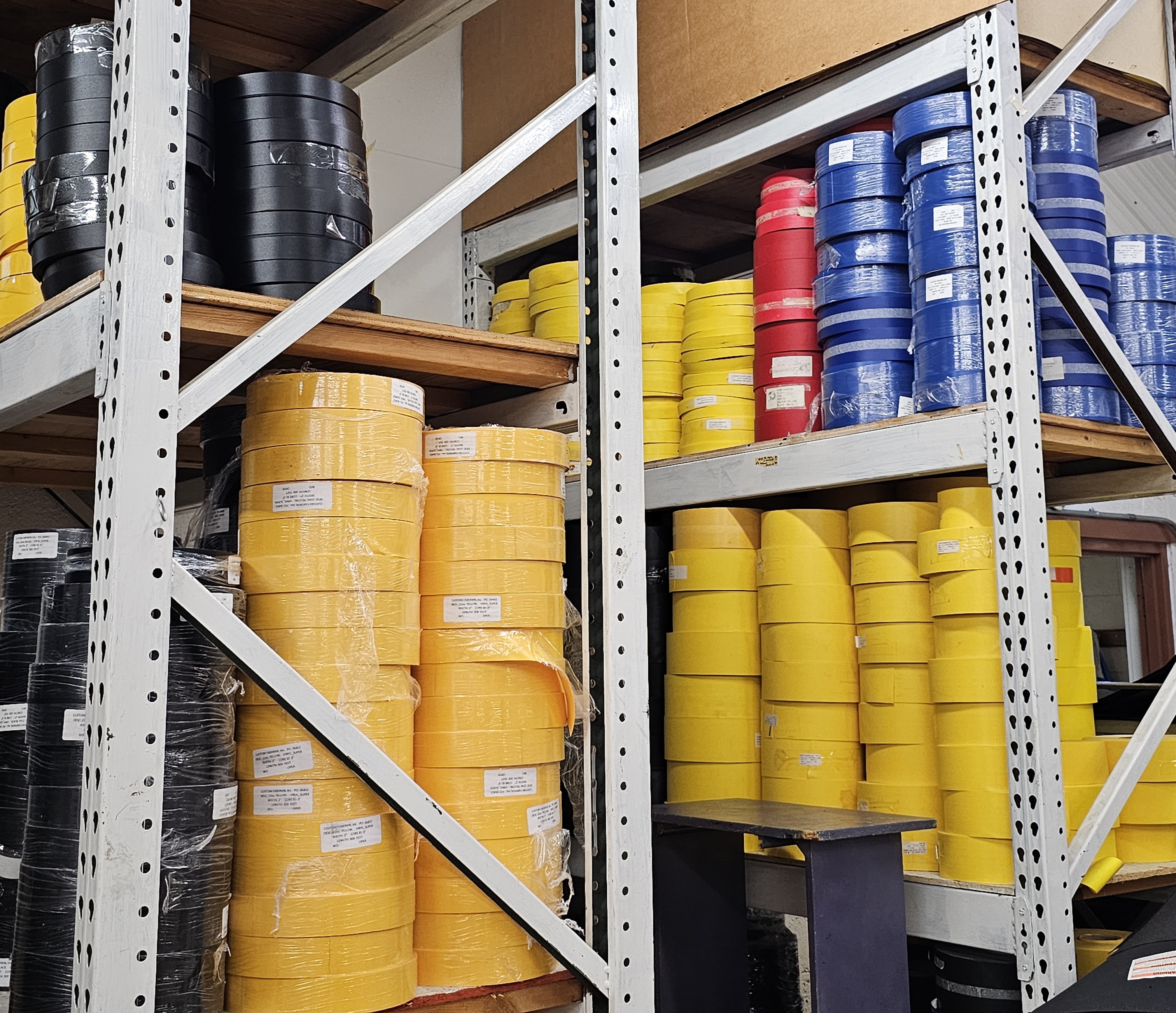

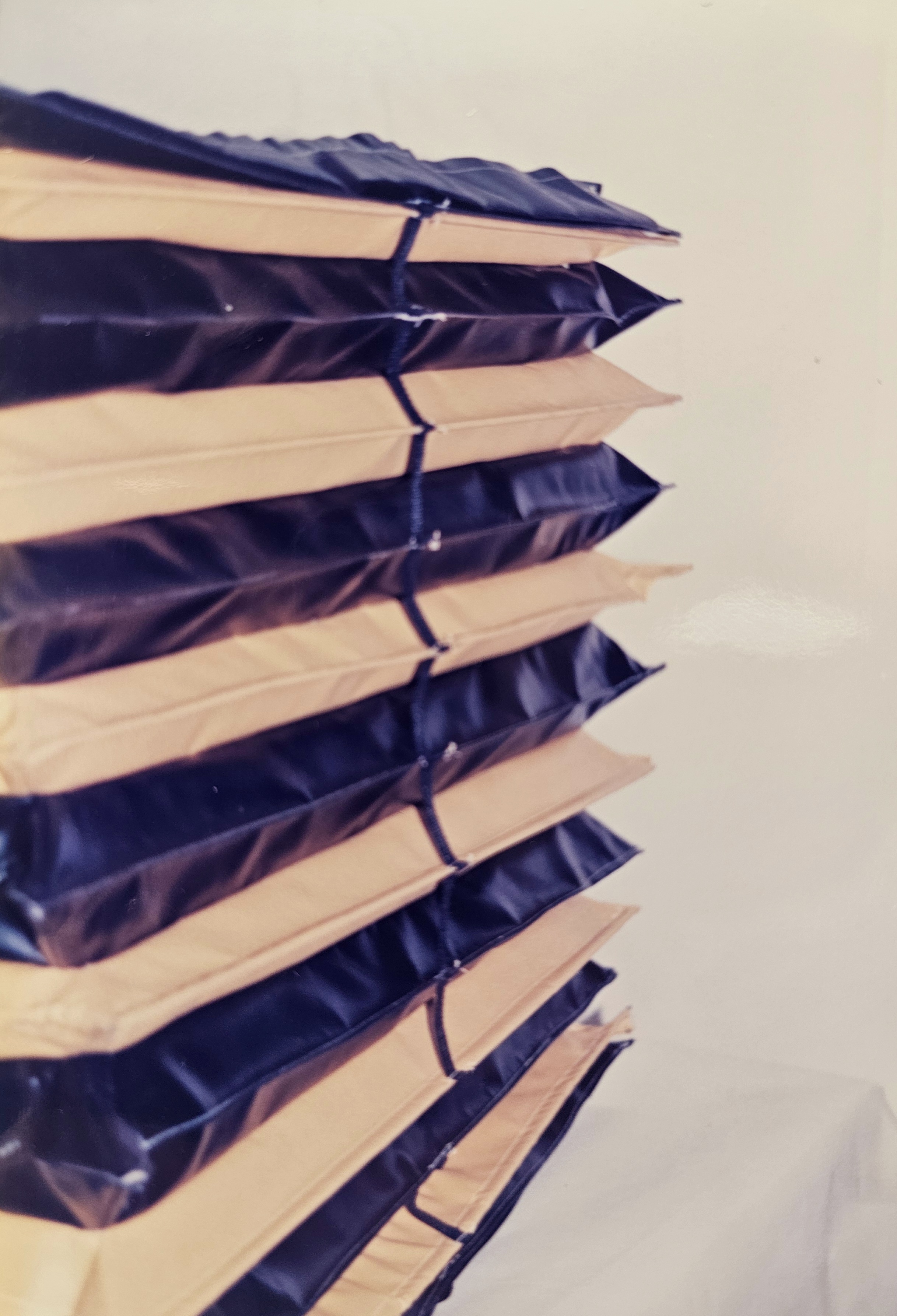

Stitched with care and precision. Our Table Guards are made with 22oz coated vinyl. Typically in alternating yellow and black folds. We also offer White, Orange, and high temperature fabric for welding and cutting environments.

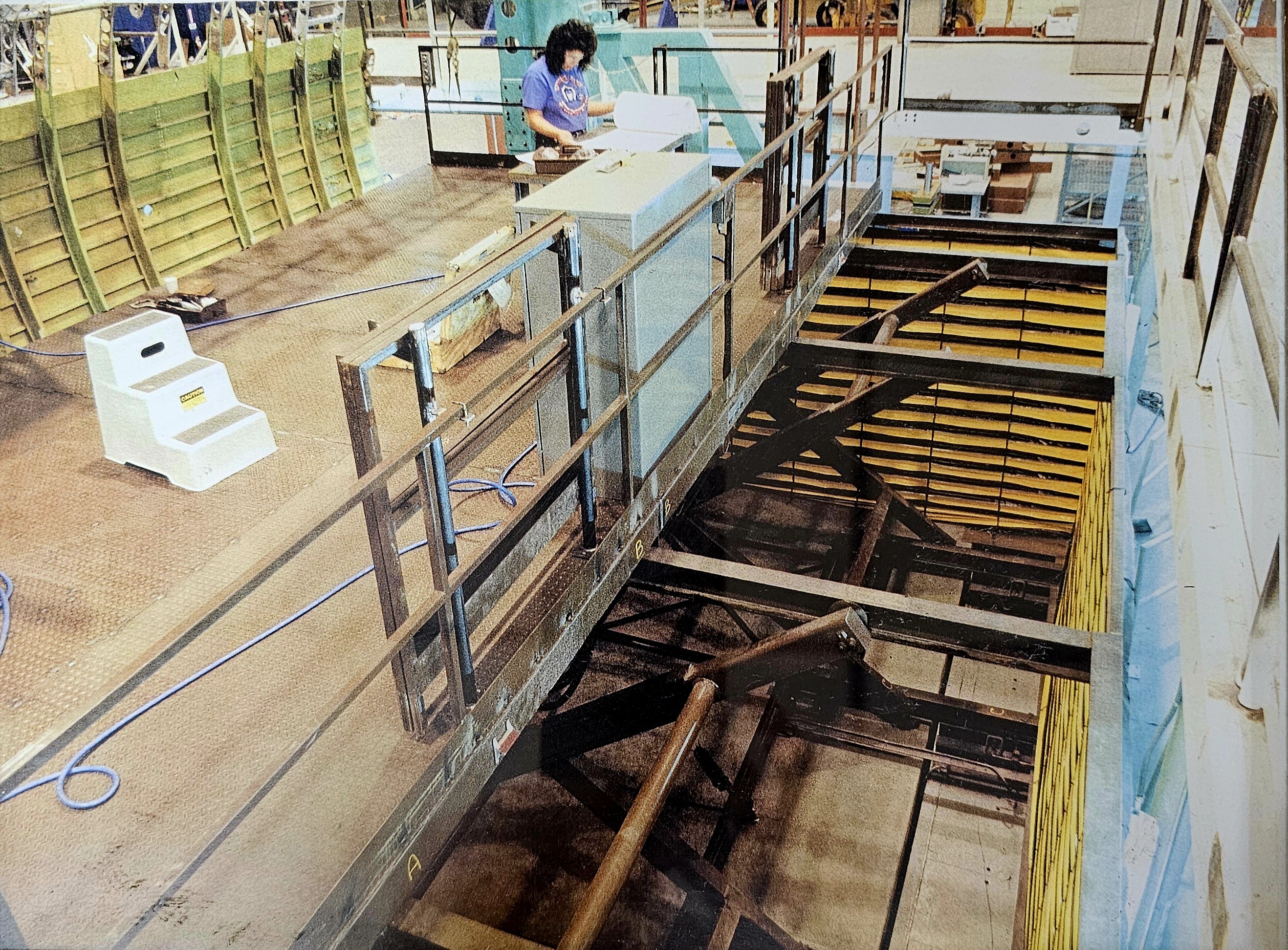

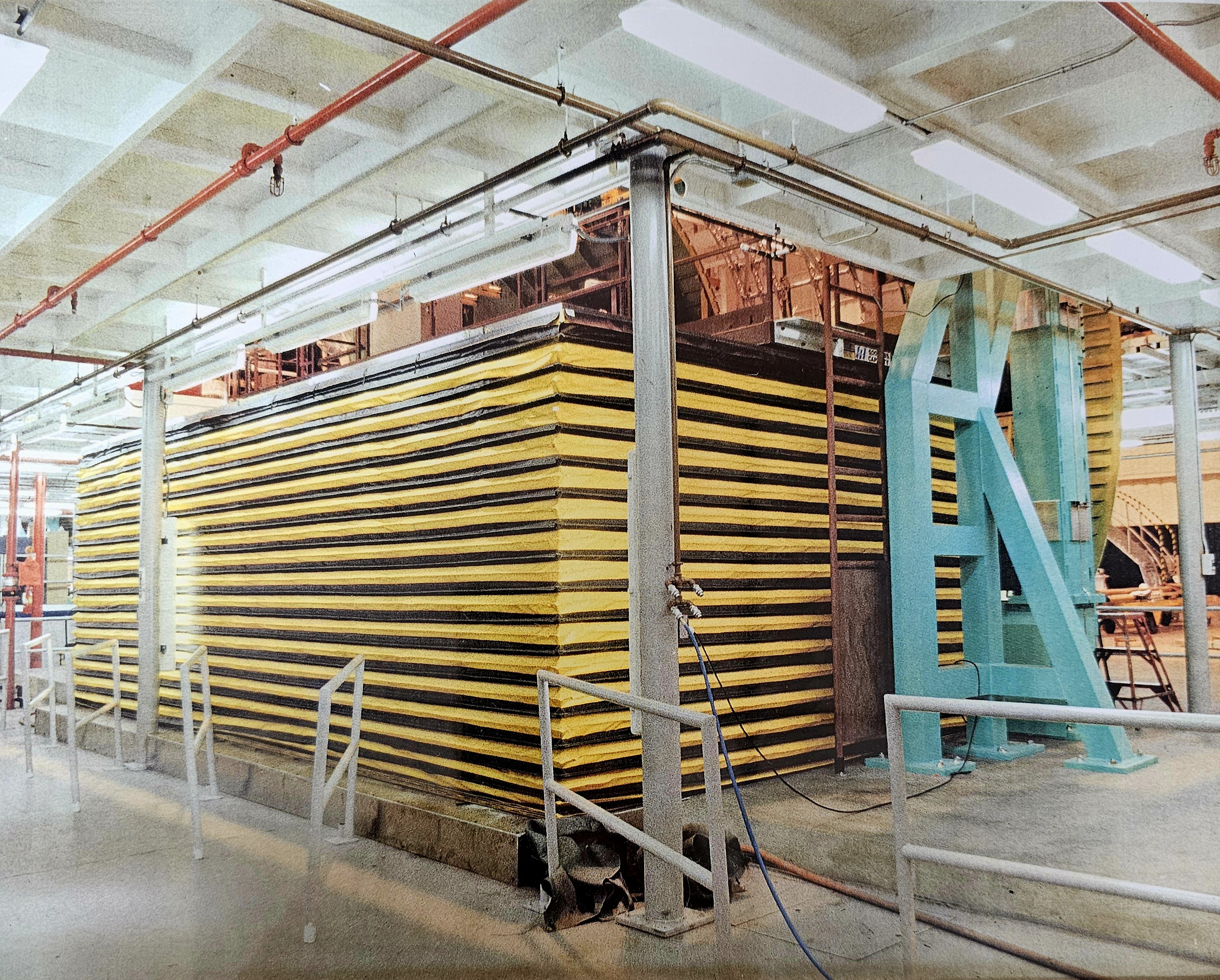

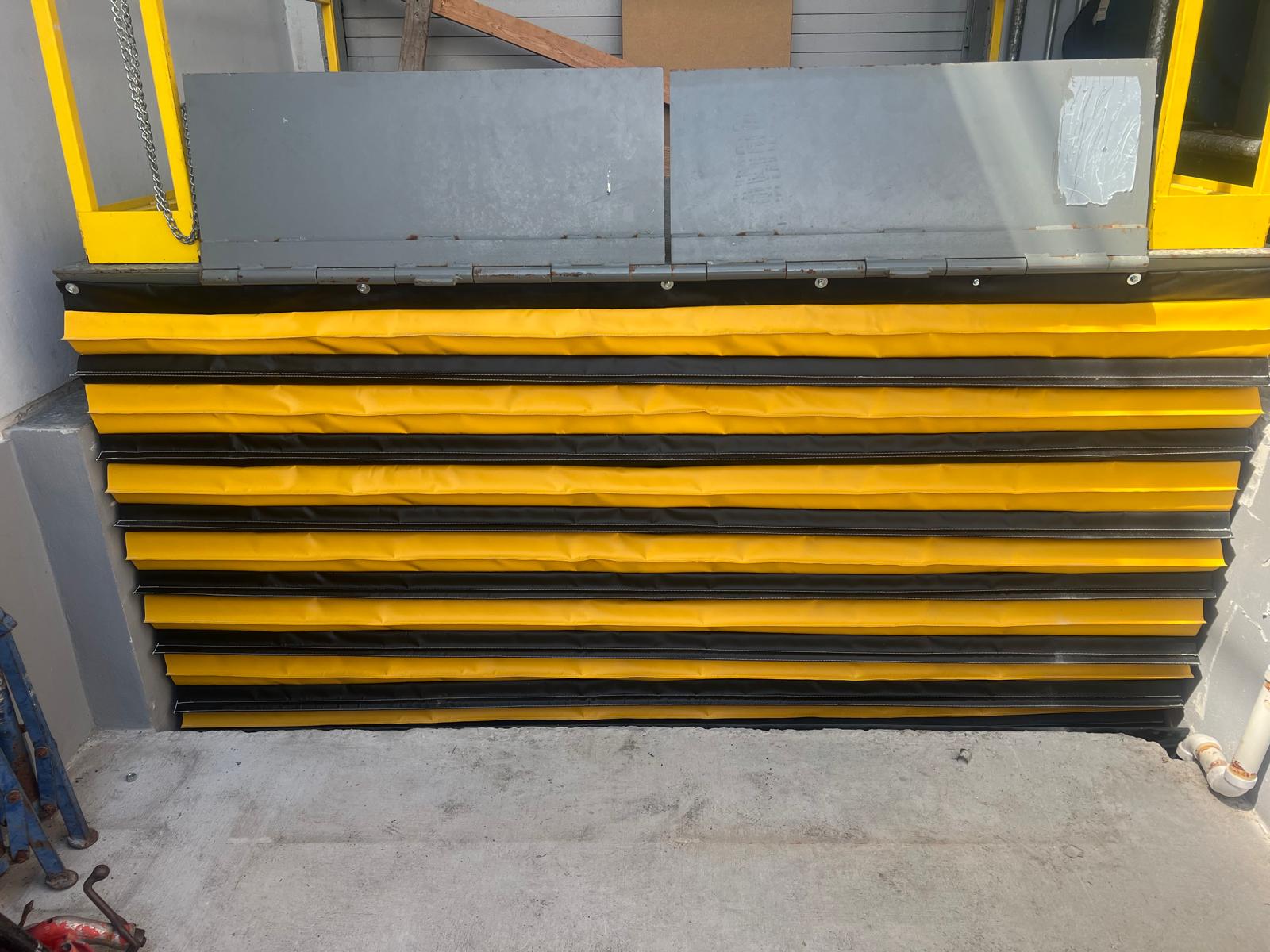

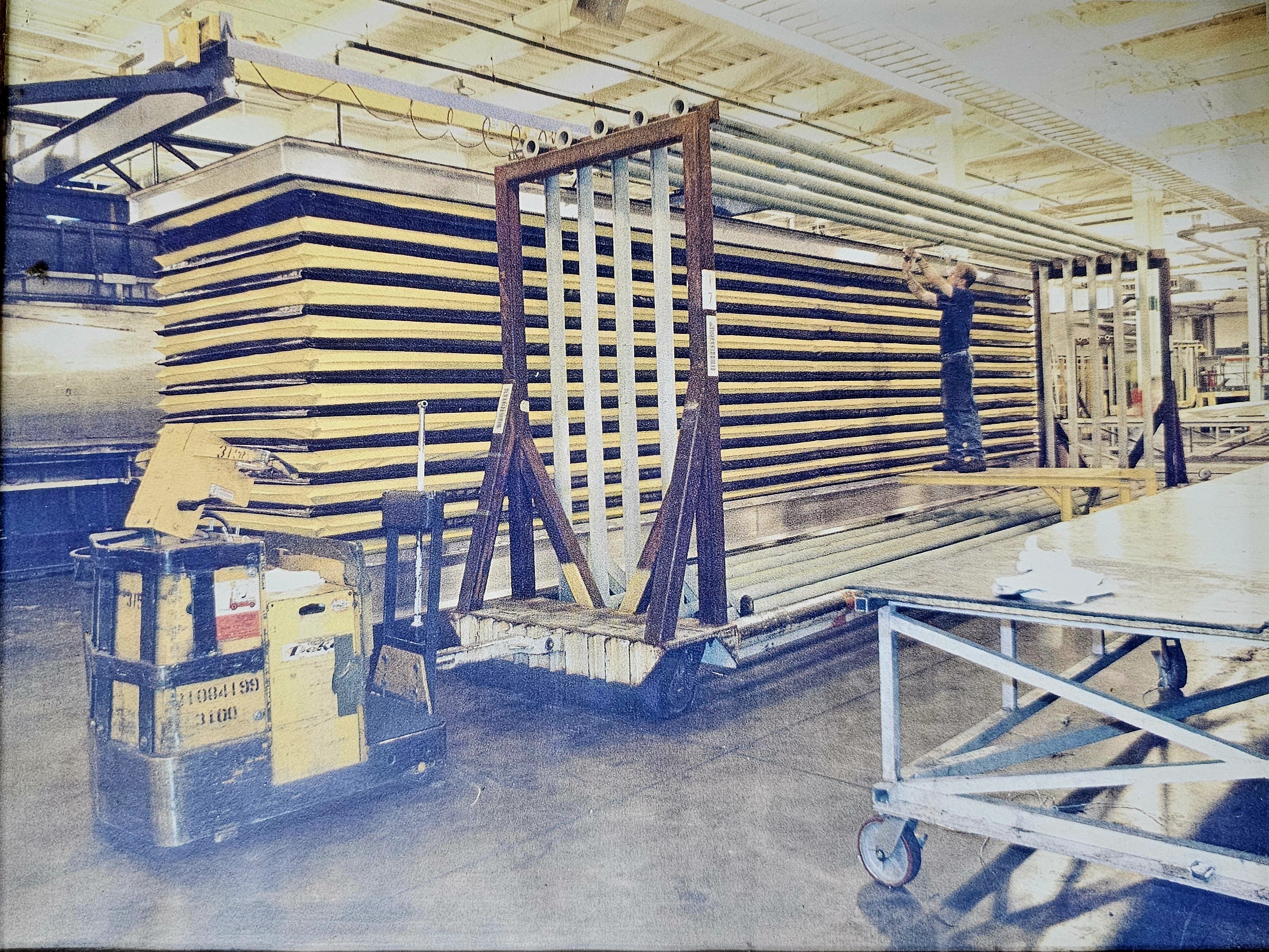

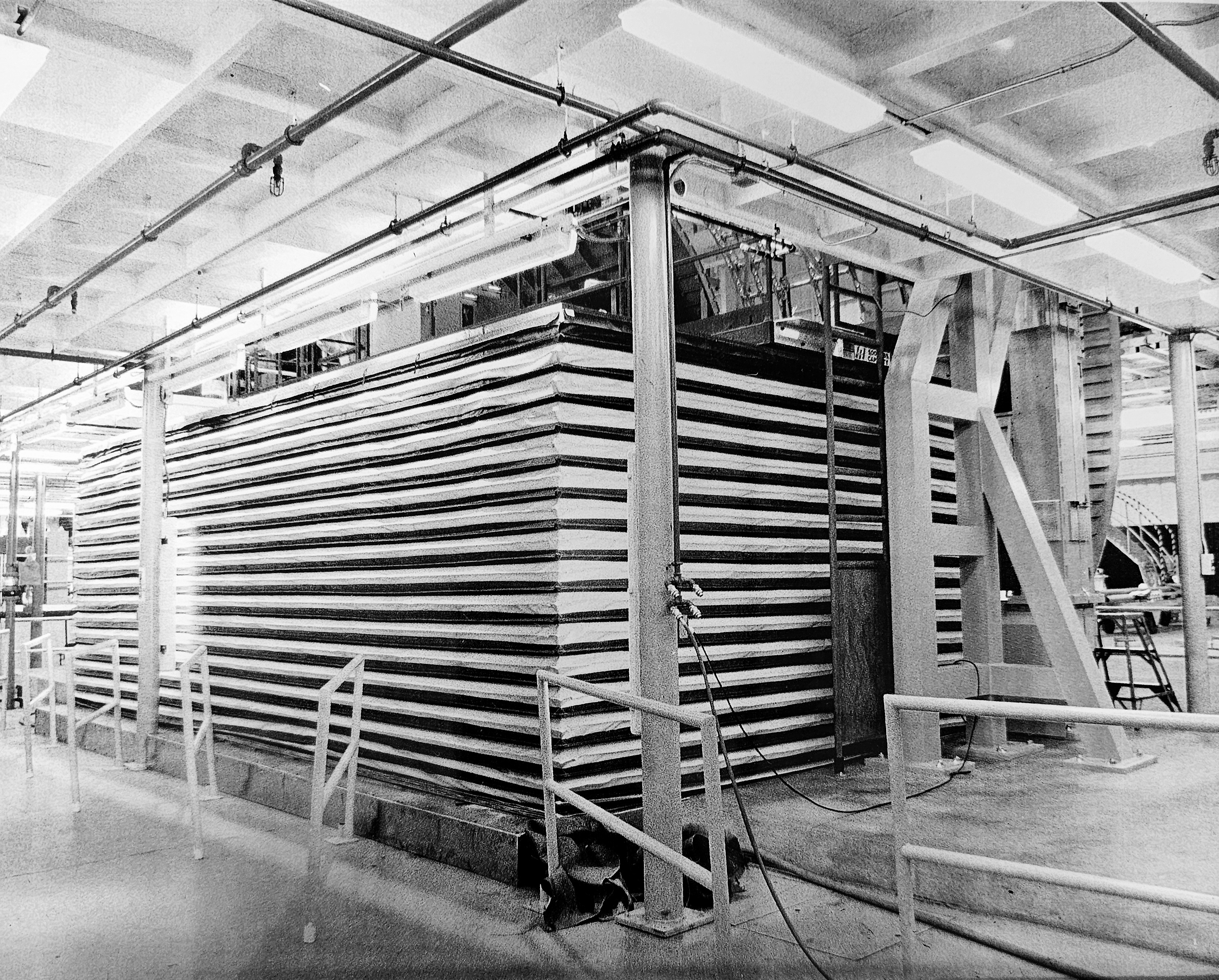

These are made to last in harsh manufacturing environments and withstand harsh weather conditions on your dock lift.
4″, 3″, 2-1/2″ and 1-1/2″ wide folds are the most widely used and will vary depending on the application.

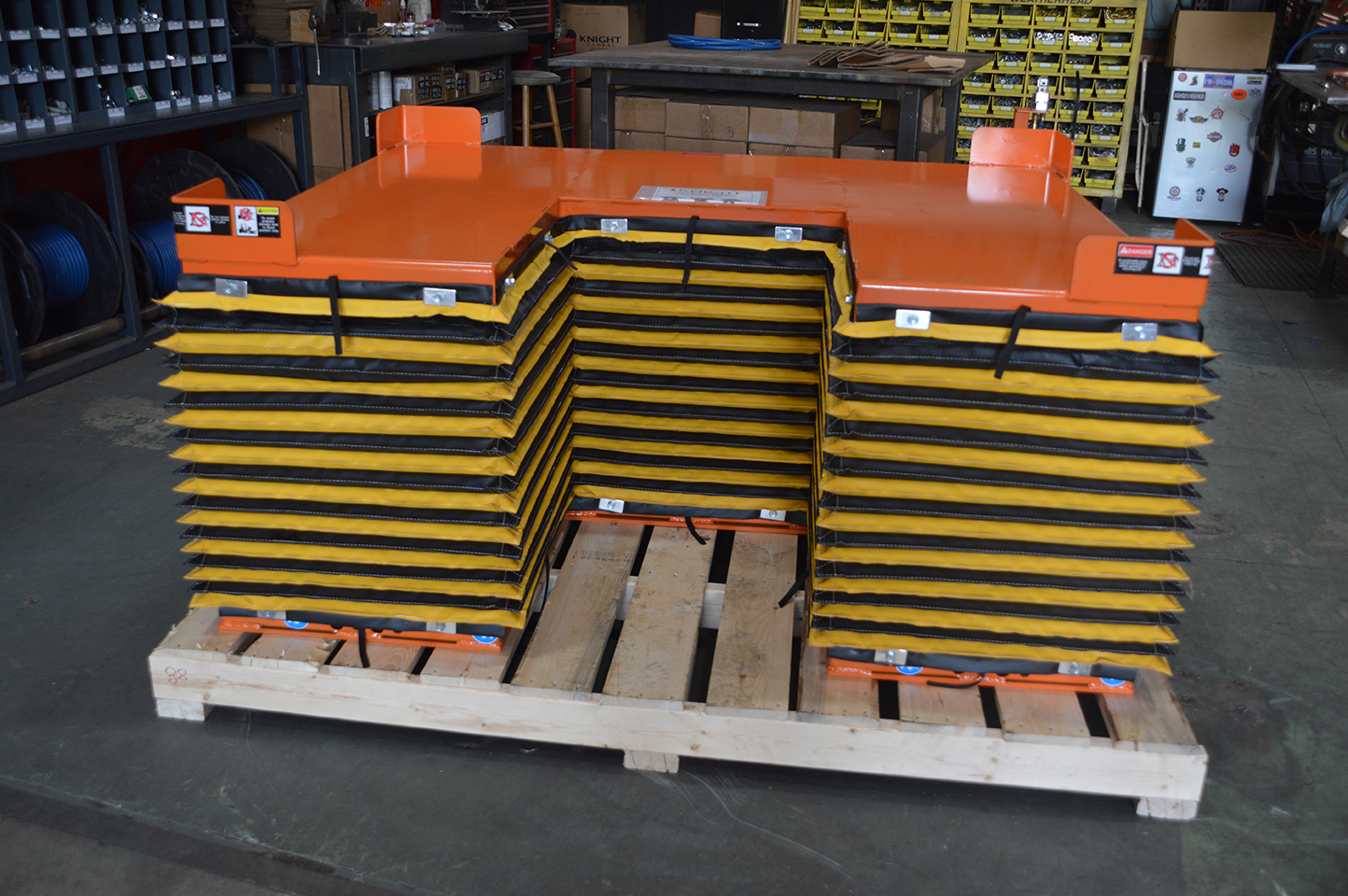

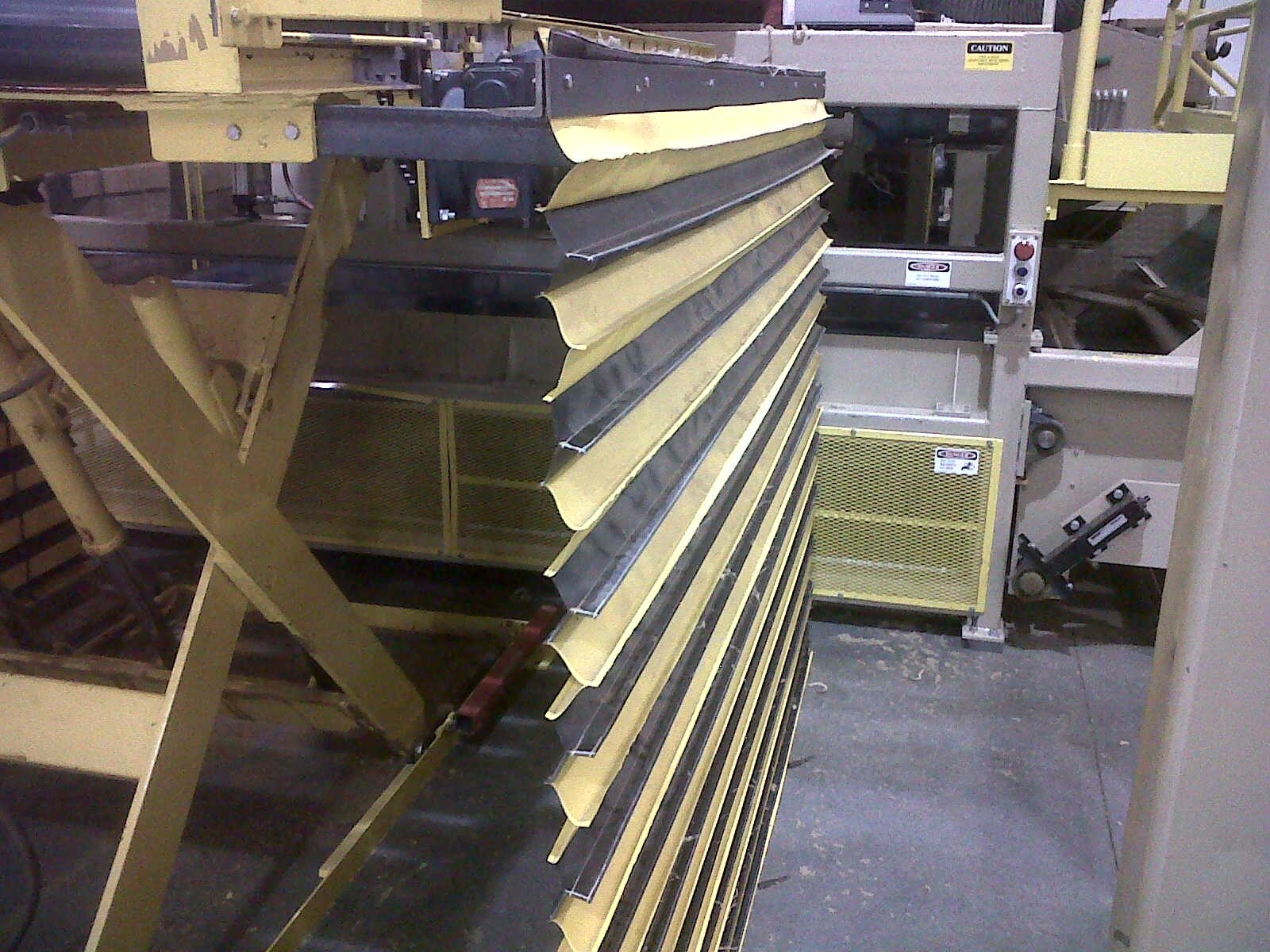

How many sides of your table do you need covered? We are truly CUSTOM! Choose 1,2,3,4 or more sides for un-traditional applications, it does not matter we will build to suit!

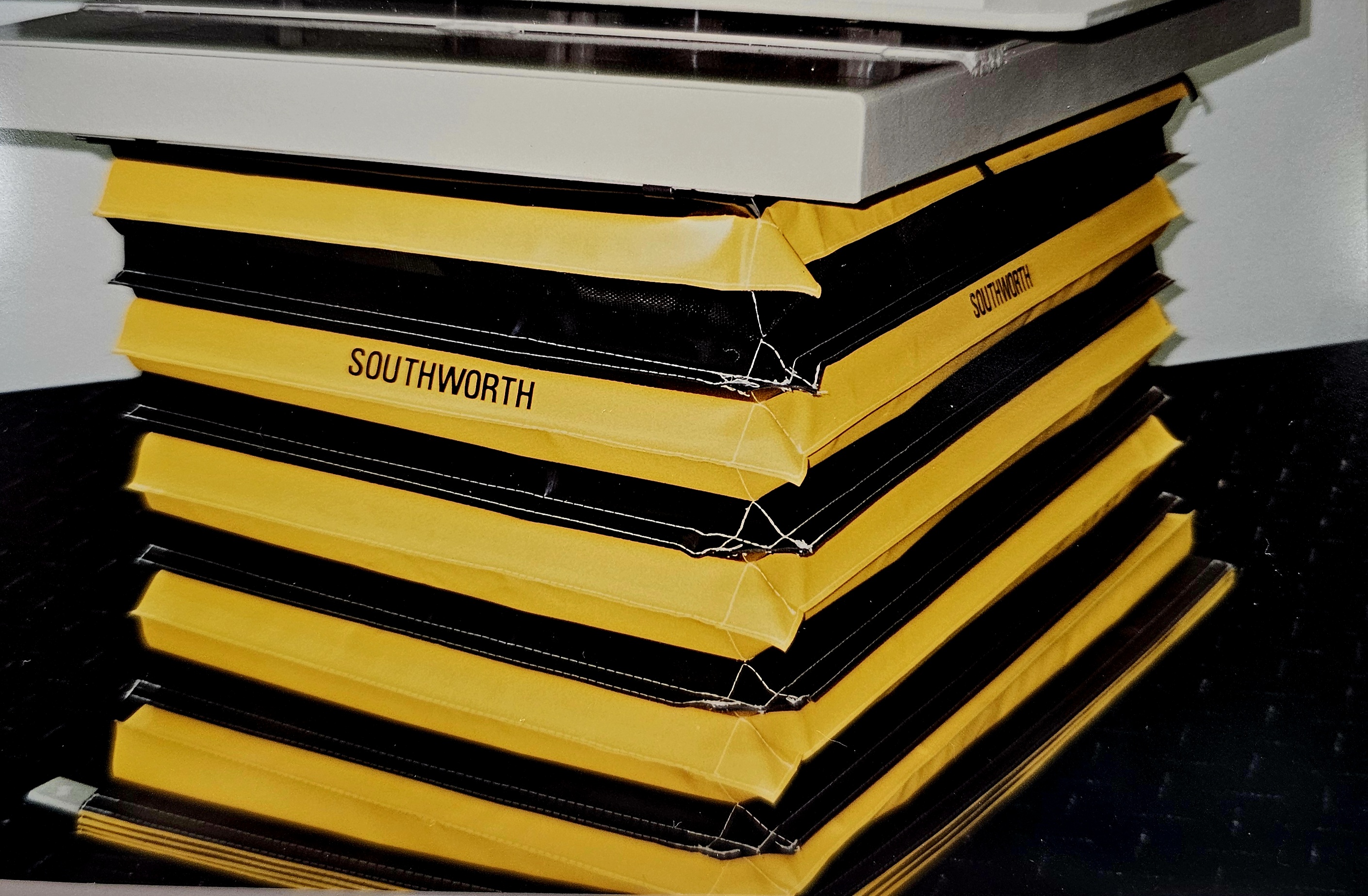

*Screen-printing and alternative fabrics available per request.
Easy to Install

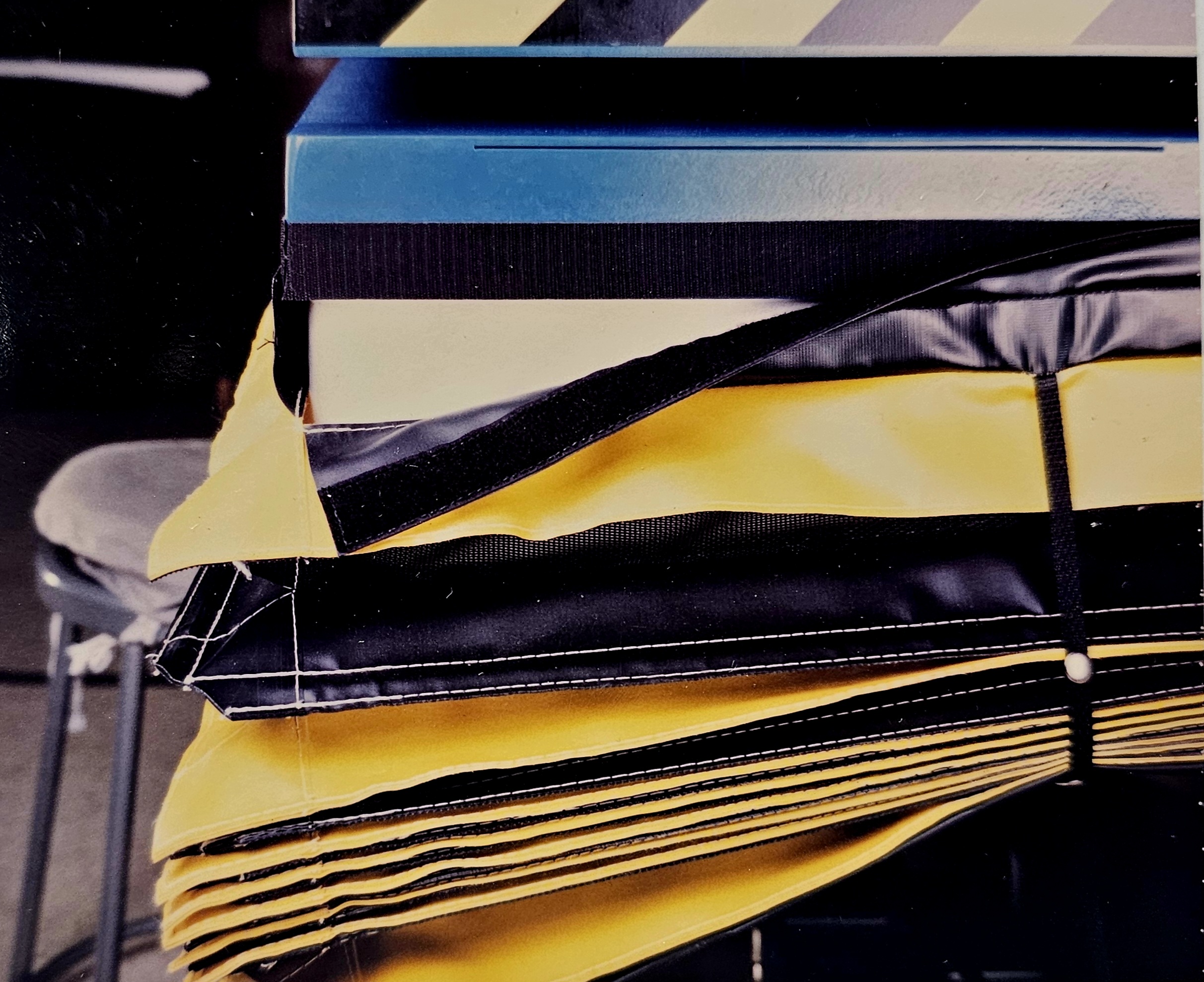

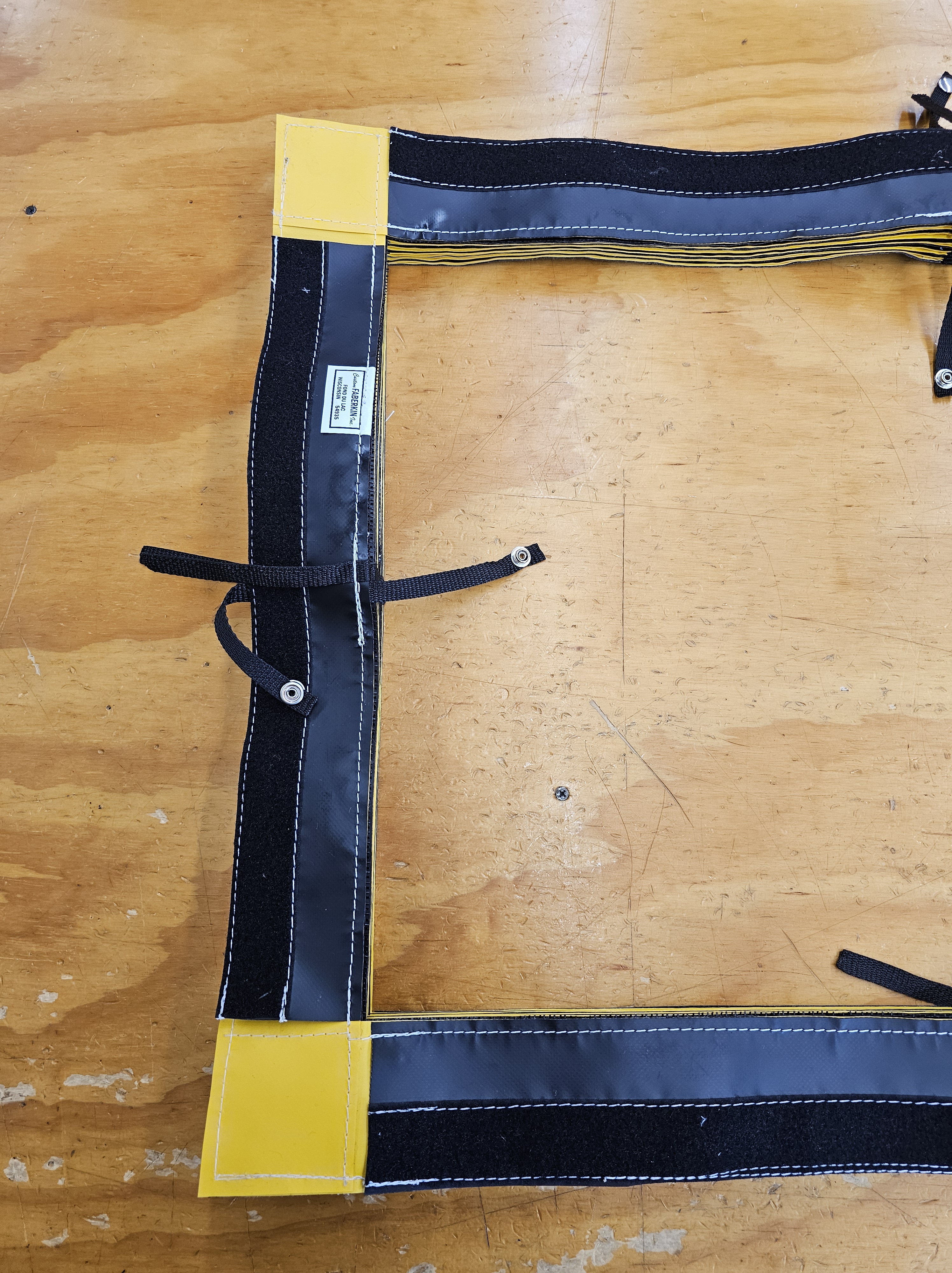

Our skirting is easy to install. Just slide the provided steel flat-bar into the top pocket and fasten to your table edge with the provided screws. This is the most secure method to mount the skirting. Hook and loop (Velcro) mounting is also available. Installation Instructions are sent with each order.
Proper Ventilation

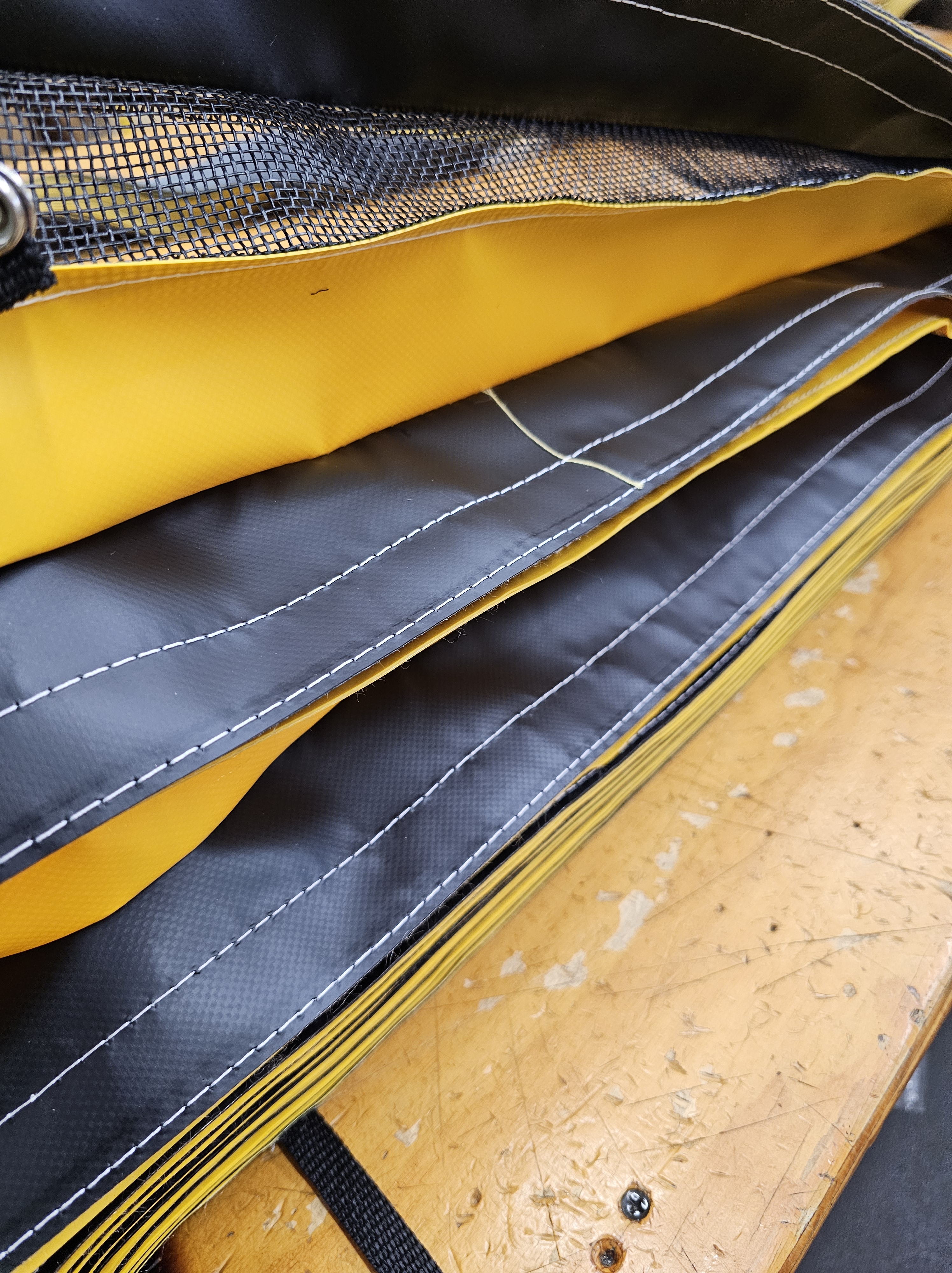

Our 4-sided accordion table skirts come standard with ventilating mesh. A strong mesh panel is sewn in near the top of the skirting. This allows air to quickly escape preventing the bellows from expanding out, or caving in with movement. The Black Mesh gives a clean look being barely noticeable rather than punching holes, creating weak points in the vinyl.

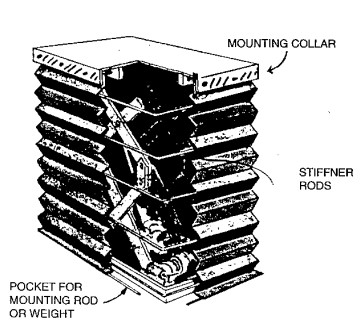

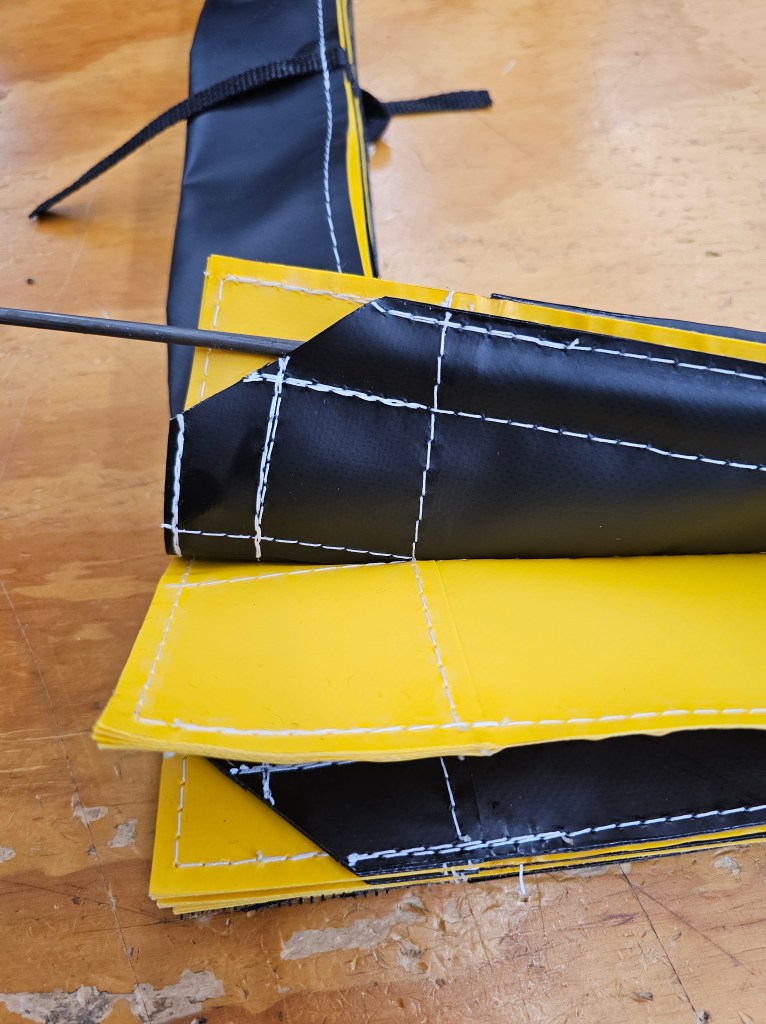

Wire Pockets

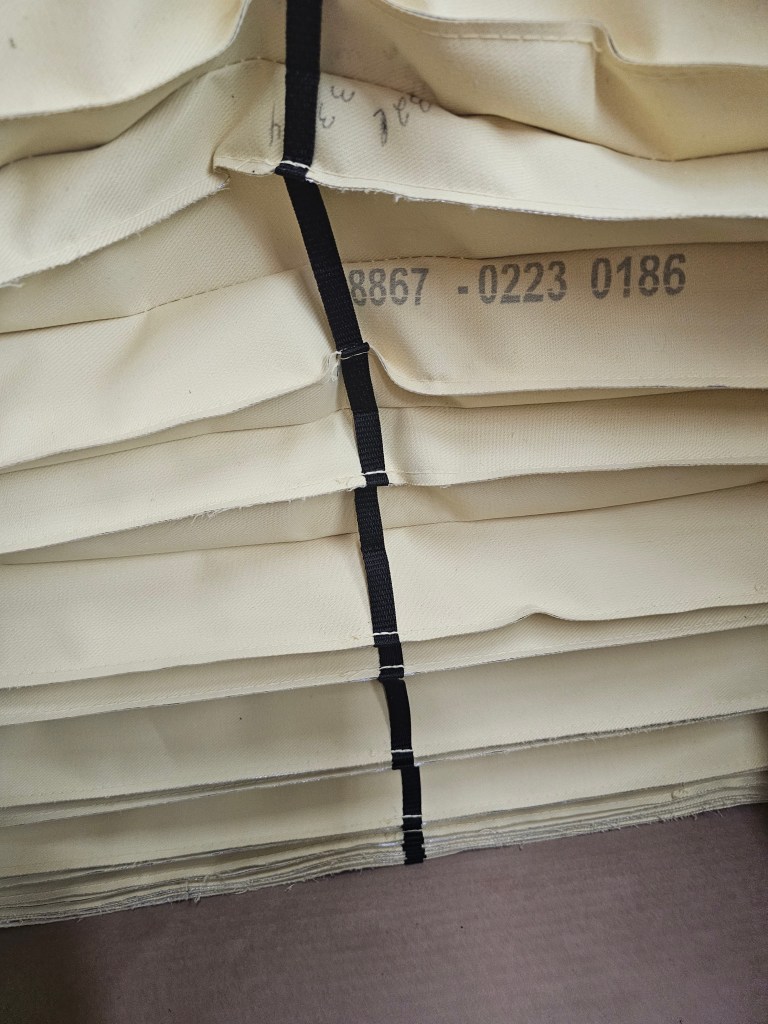

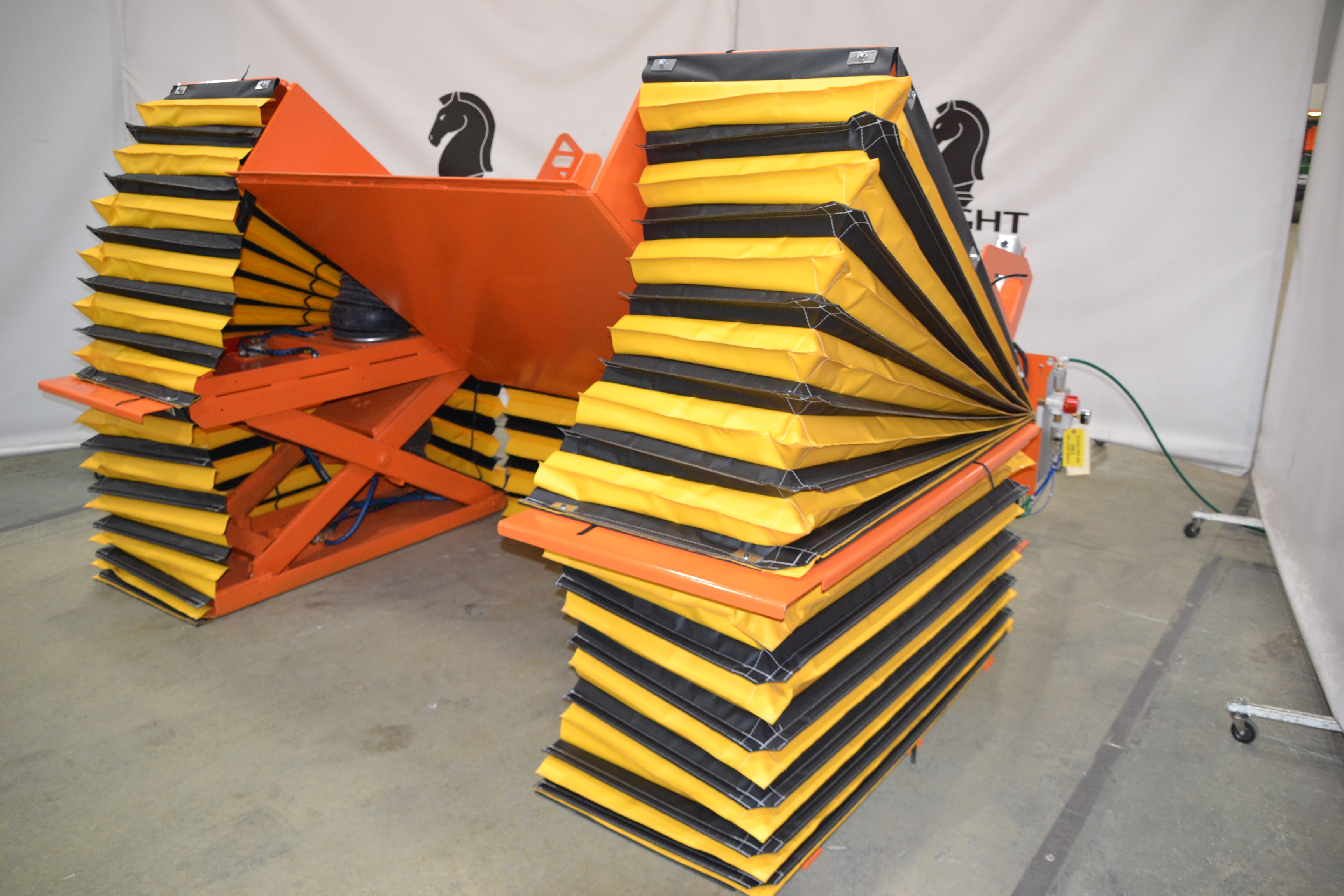

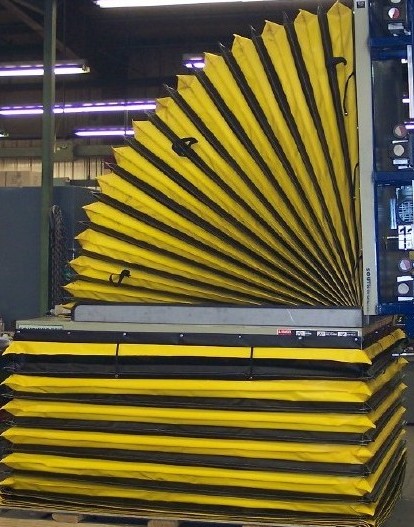

Having stiffening wires installed on the skirt is essential for correct operation. We sew in pockets and provide wires. Wires add rigidity to the skirt and assist with keeping the shape as the skirting is moving with the table. This is especially critical when operating a tilting table.

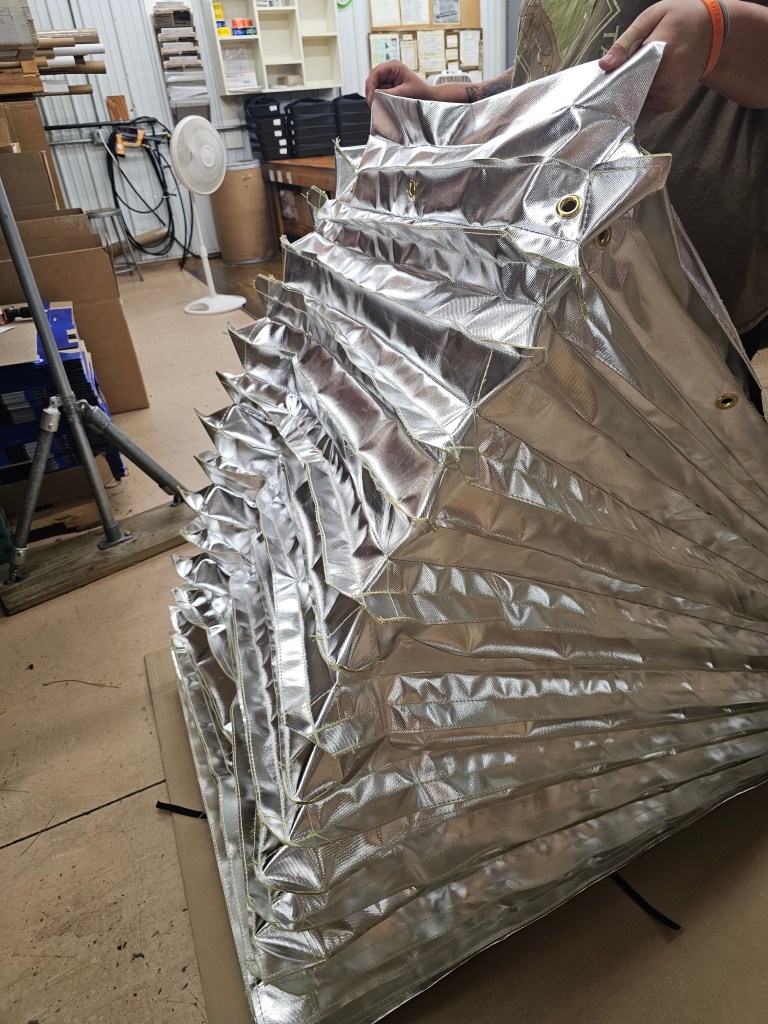

Kevlar

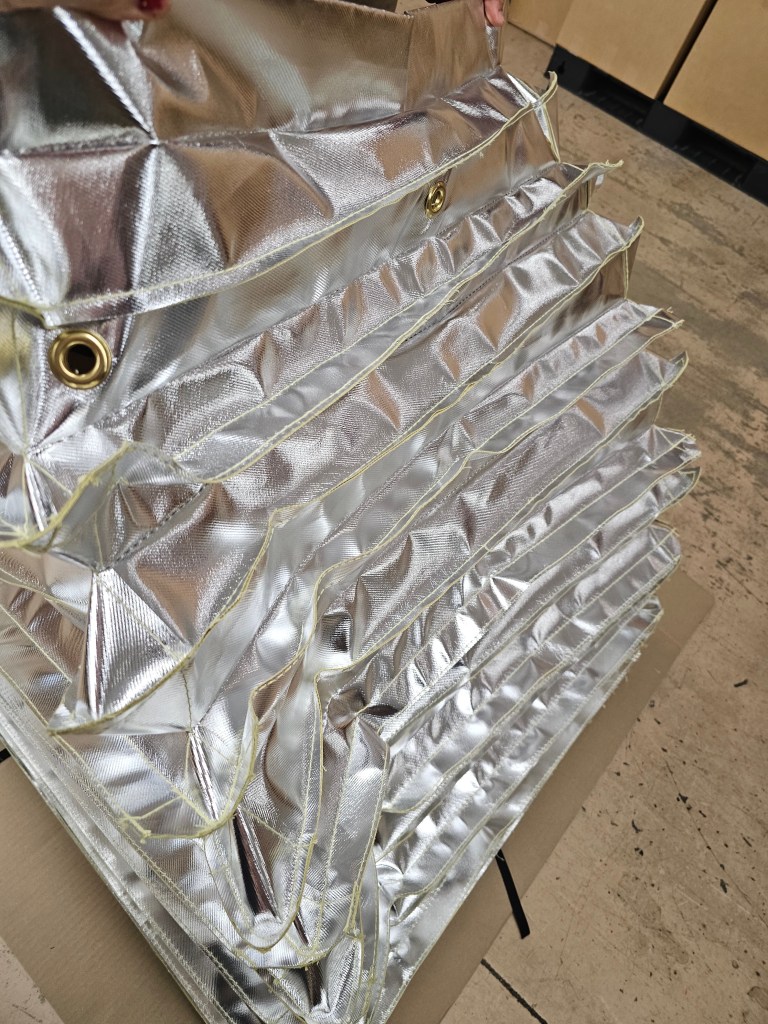

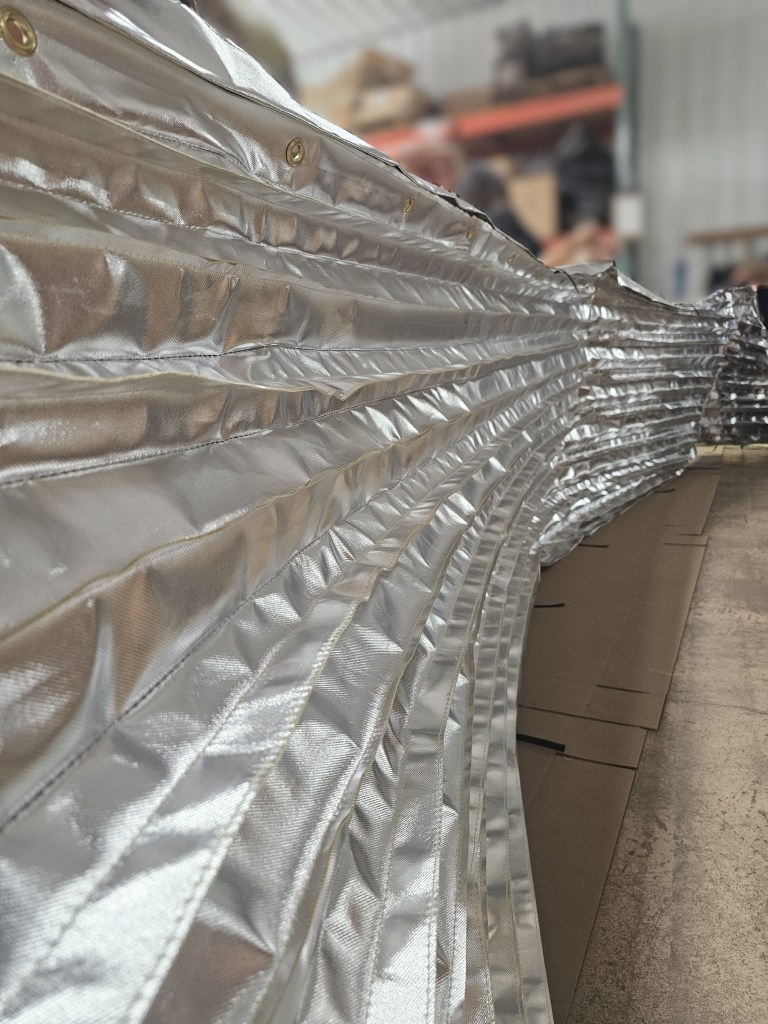

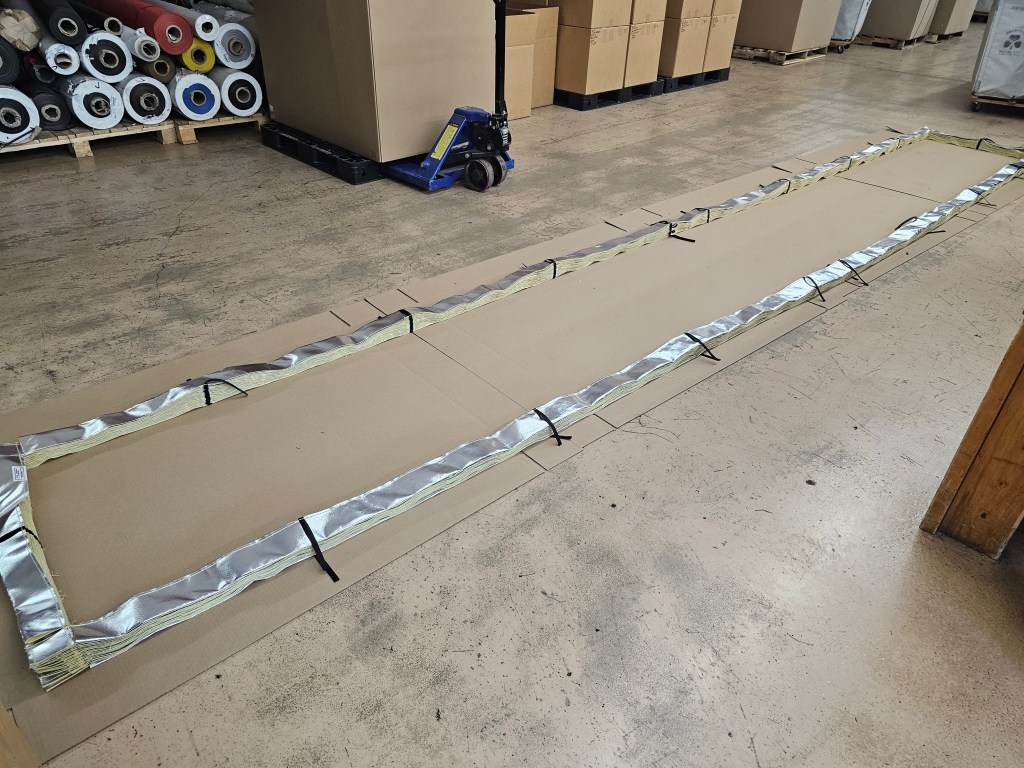

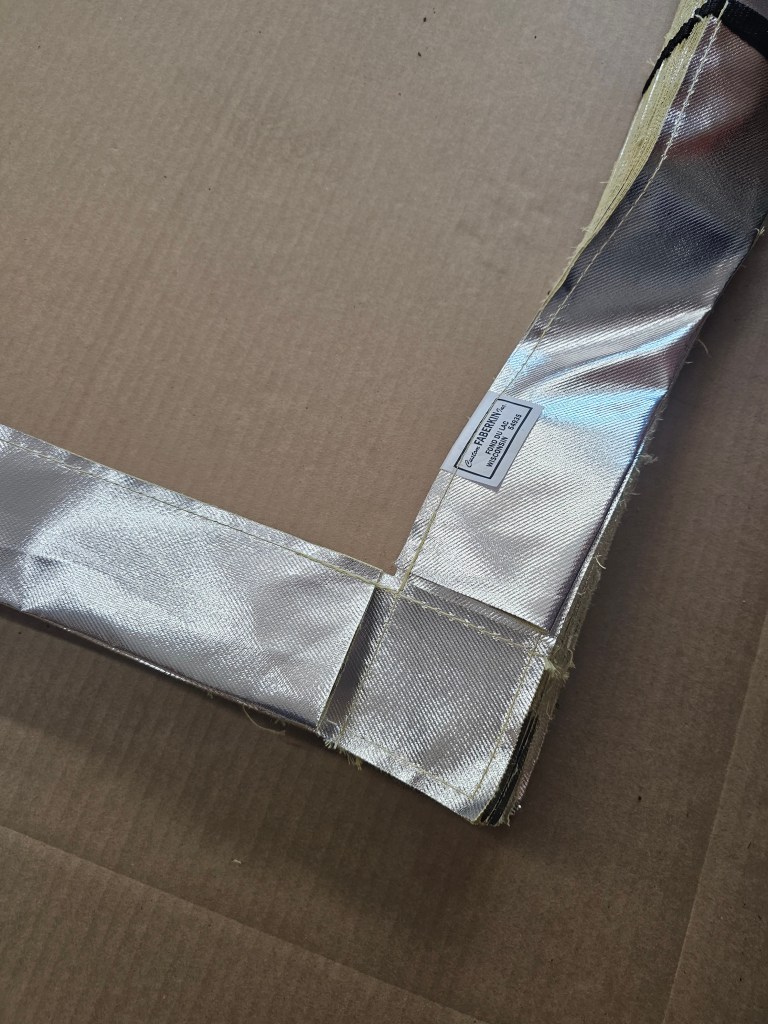

For your high-heat applications we offer 1091 Aluminized Kevlar custom skirting. Perfect for situations where a standard vinyl just won’t hold up to the heat!
Vented with Grommets, no mesh. Pockets and flat bar for mounting. Perfect modifications for high heat environments with sparks and open flame like at a forge.
Roller Curtains
When skirting is out of the question, a roller curtain is a perfect solution. Rollers offer similar protection from pinch points and dust, but take up less space. Curtains provide coverage when space is restricted and the bellows do not fit.
Made with galvanized spring-steel non-locking rollers and strong 22oz coated vinyl. Multiple colors of vinyl available and other material options as needed for the application.
Rollers can be fabricated in lengths from 6″ to 120″. Several diameters are available. The extension length of the curtain will determine the final diameter needed. Mounting brackets are supplied with each roller curtain.
Need Custom Safety Skirting, Bellows or Roller Curtains?
Don’t wait! Reach out today to get your quote.
